175psi V Style 2 Cylinder Air Compressor Pump Motor Head Double Stage Air Tool
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product

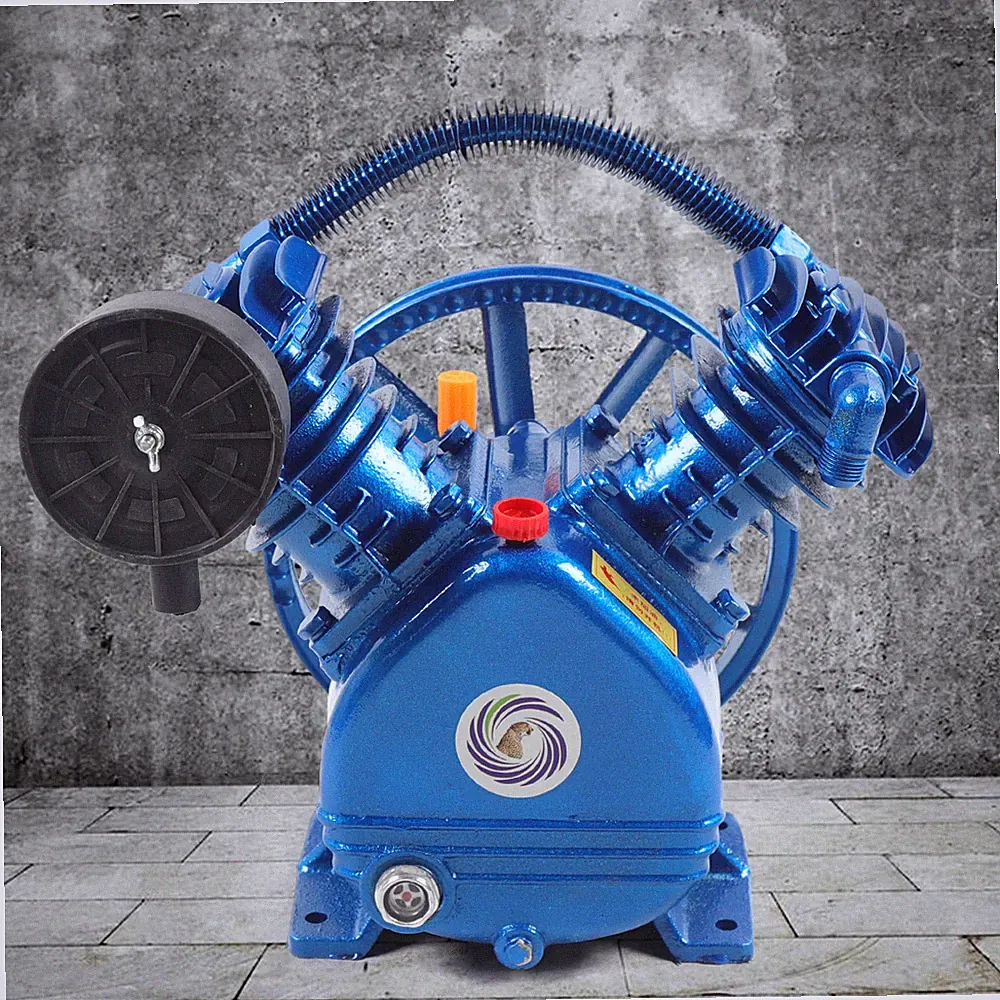

This is a V-Style 2 Cylinder Air Compressor Pump Motor Head, designed for double-stage compression. Made from a durable combination of cast iron and aluminum, it provides an exhaust capacity of 250L/Min (8.8 CFM) and can reach a maximum working pressure of 175 PSI. It features a compact design, a pump speed of 1050 RPM, and requires a 3 HP power source (2.2KW). This portable blue unit is intended as a replacement or component for existing pneumatic systems, coming with a manual for installation.
Our take
This V-Style 2-cylinder air compressor pump head is a robust component for anyone looking to build or replace a compressor's main pump. The cast iron and aluminum construction gives it significant durability, and the 175 PSI maximum working pressure combined with an 8.8 CFM flow rate means it can handle demanding air tool applications. I appreciate the double-stage compression, which typically leads to higher efficiency and cooler operation. The 3 HP requirement indicates it's meant for substantial motor pairings. While 'portable,' remember this is just the pump head, not a complete, ready-to-use compressor with a tank. The compact design is good for integration, but the lack of lubrication type info is a minor oversight.
Pros & Cons
Pros
- V-Style 2 cylinder pump
- 175 PSI maximum working pressure
- 8.8 CFM flow rate
- Durable iron + aluminum construction
- Double-stage compression
Cons
- Pump head only, not a complete compressor
- Lubrication type not specified in detail
- Requires separate 3 HP power source
Specifications
- 1.Features` Easy installation,Compact Design
- Feature* Direct Replacement
- Highlights 1 Guaranteed Customer Service!
- Key Features**2 High-quality Material
- Features Compact Design and Beautiful Appearance
- Lubrication Type /
Show all 34 specifications
- Flow Rate
- 8.8CFM
- Tank Capacity
- /
- Tank Material
- Iron+aluminum
- * Feature *
- Creative Design，Durable Material，Beautiful Appearance
- Air Delivery
- 8.8CFM(0.25m³/min)
- Pump Speed
- 1050RPM
- Exhaust Capacity
- 250L/Min
- Brand
- Unbranded
- Type
- Air Compressor Pump
- Power Source
- Pneumatic
- Set Includes
- Manual
- Color
- Blue
- Model
- V-0.25/12.5
- Frame Material
- Cast Iron
- Portability
- Portable
- Horse Power
- 3 hp
- Maximum Working Pressure
- 175 Psi
- Power
- 2.2KW
- Main Wheel
- 250 mm
- Pipe Interface American
- 3 / 4-16(19mm)
- Cylinder Diameter
- 65 * 1 + 51*1 mm
- Compression Level
- Secondary Compression
- Installation Hole Distance
- 170 * 90 mm
- Material
- Cast Iron
- Product Size
- 35 * 25 * 32 cm
- Package Size
- 38 * 37 * 29 cm
- Net Weight
- 13.7kg
- Driving Mode
- Pneumatic
